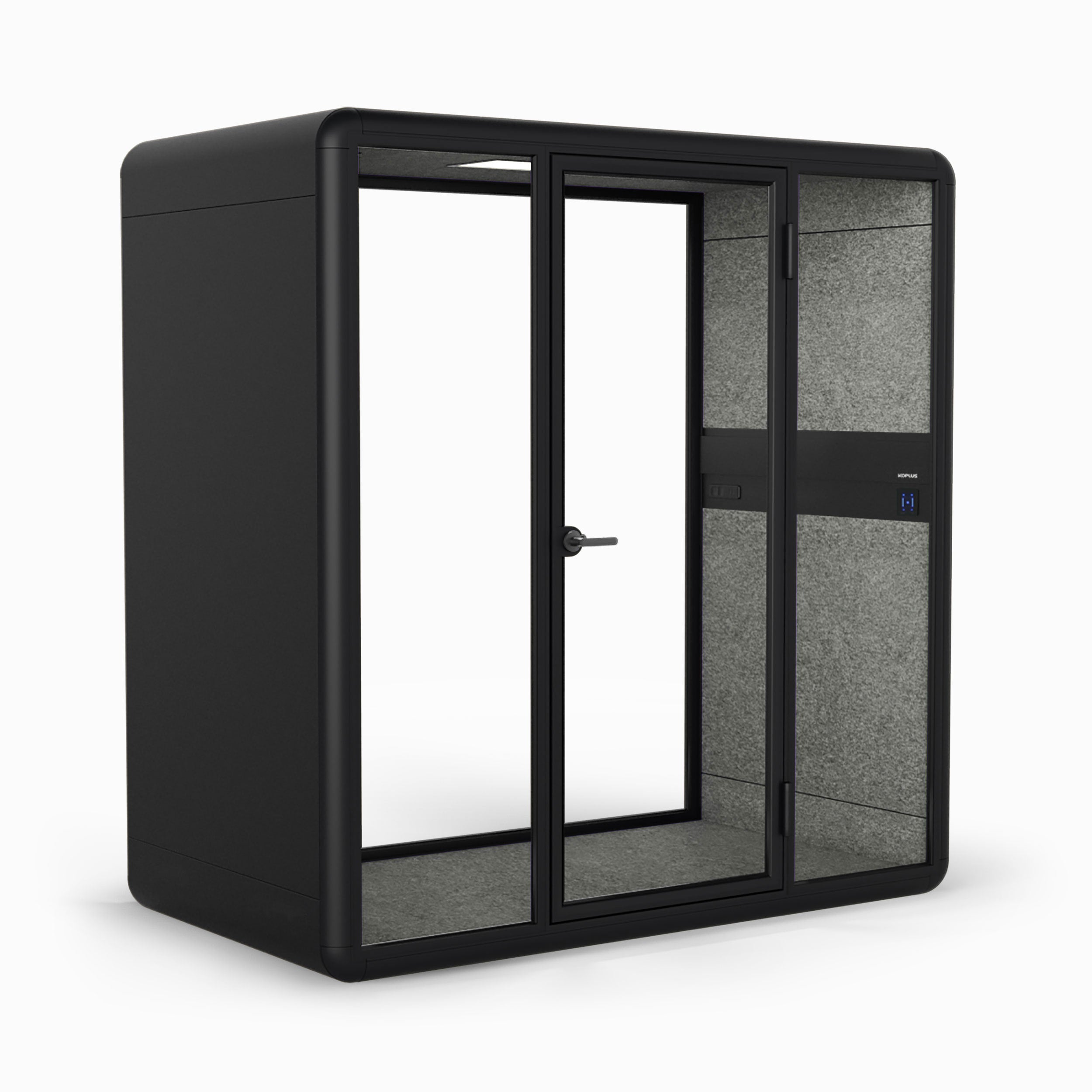

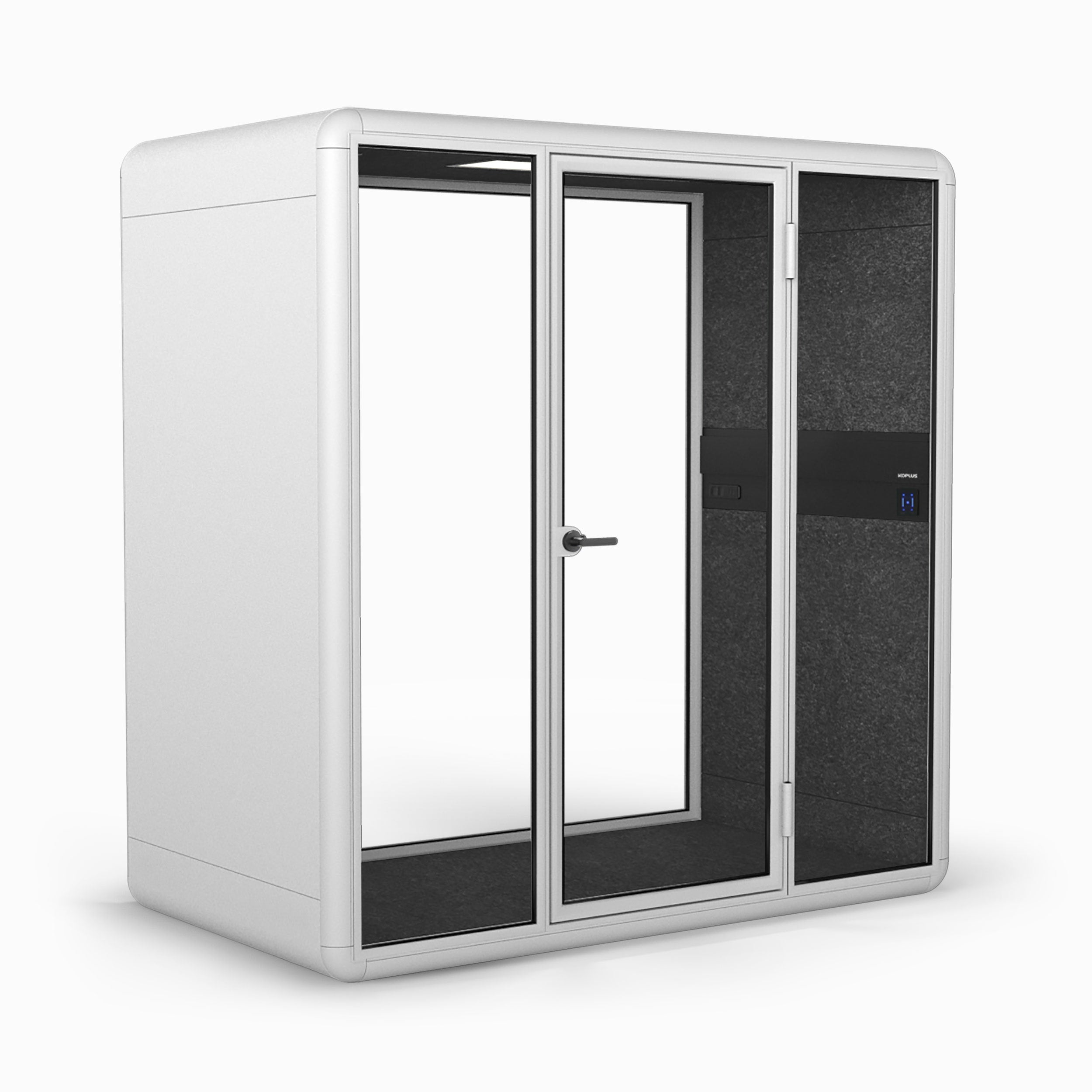

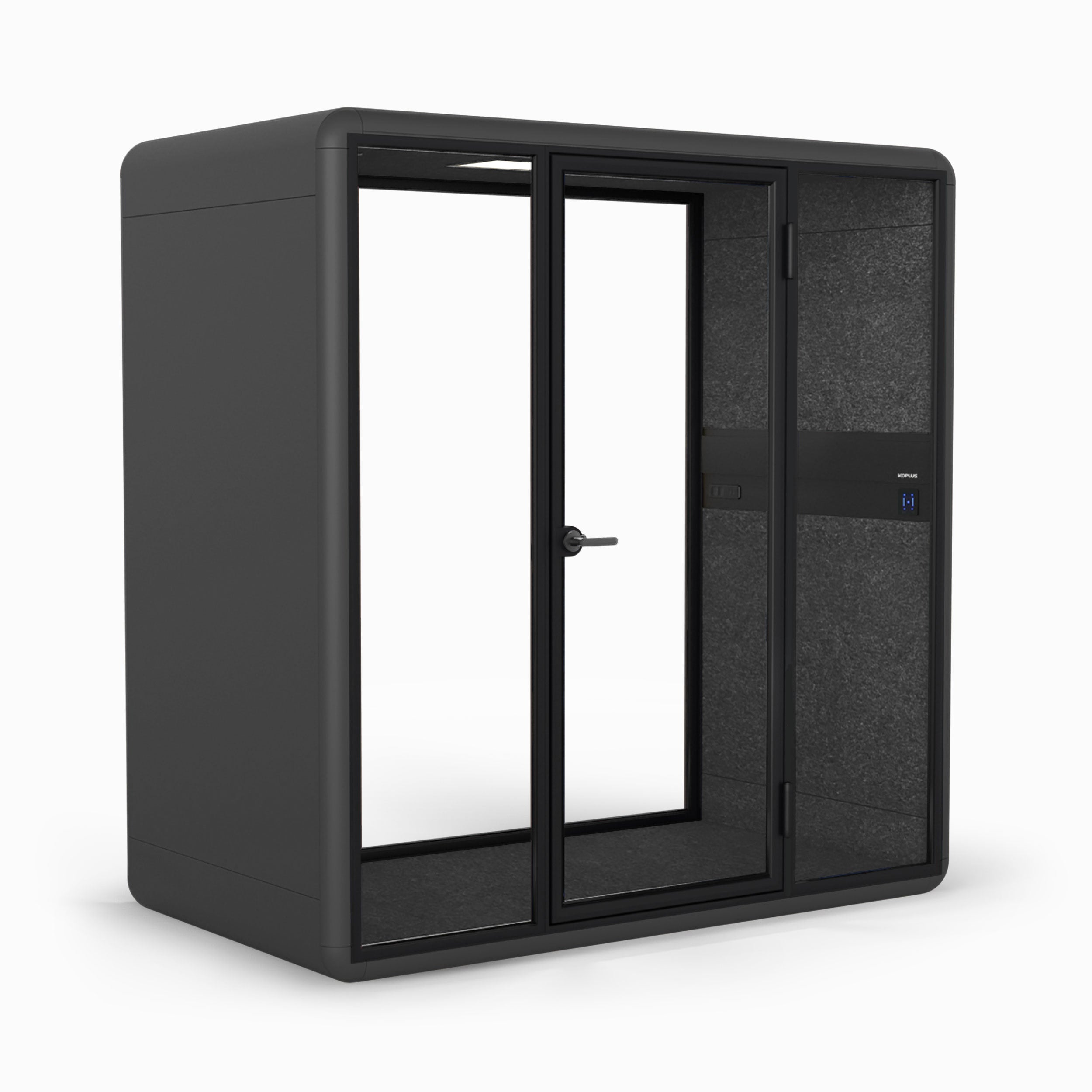

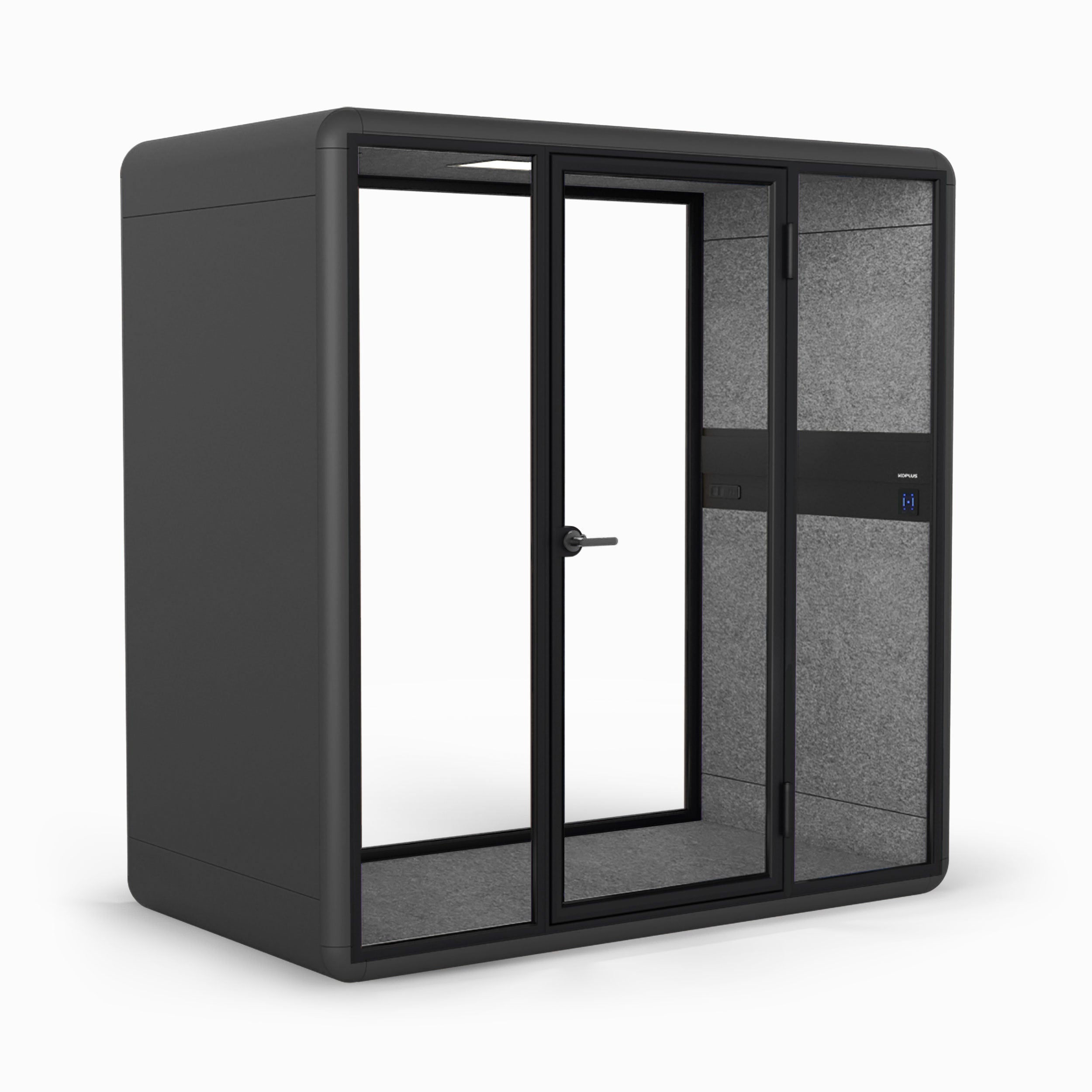

A flexible meeting room innovated for the modern open workstyle.

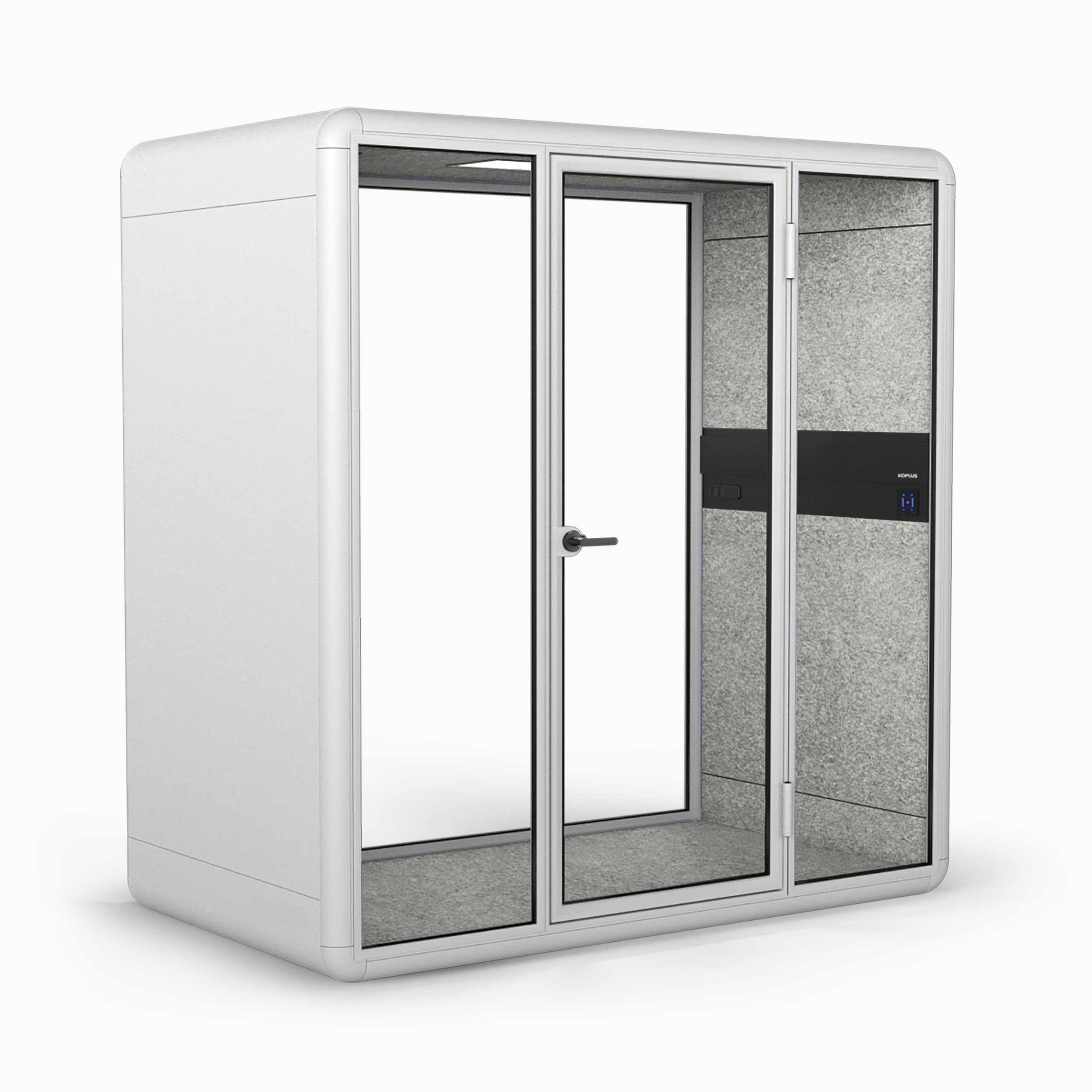

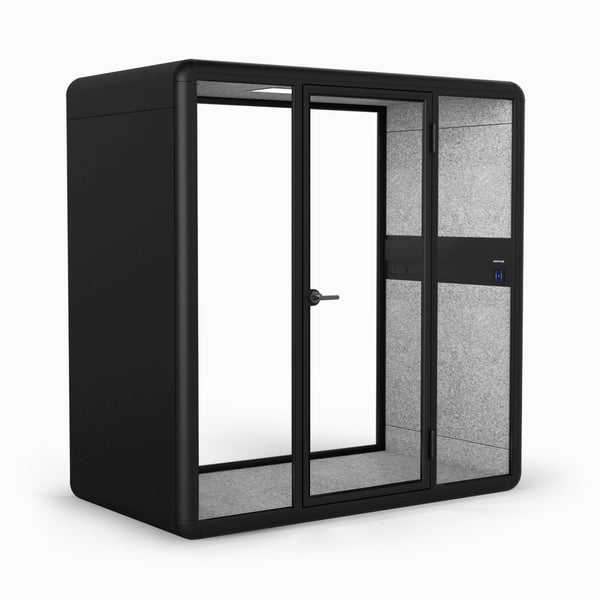

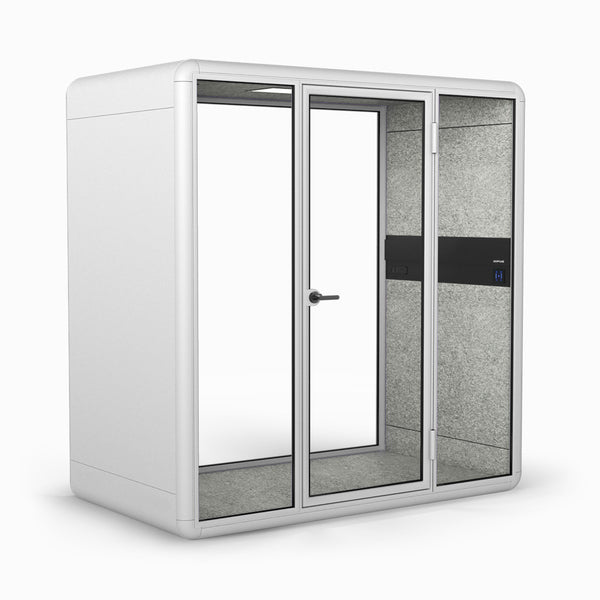

Kolo Duo features a modular design that accommodates up to 4 people per unit. The configuration can be extended into Duo+ with two units and Duo++ with three units to provide a more formal meeting venue for up to 8 people. The space can be used as a meeting/conference room, a workstation, or a personal resting space. Kolo Duo is adaptable to any open-plan workspace to meet your needs.
-
Acoustic Performance
Certified Class B under ISO 23351-1, the international standard for speech level reduction.
-
Power Outlets
Kolo Duo: 1 AC power sockets, 1 USB-A charging ports, 1 CAT-6 port, 1 IEC C13 cable
Kolo Duo Extension: 1 IEC C13 cable
The power outlet and components are UL, PSE, and CE certified.
The fuse on Kolo Duo is set with max 10 A.
Please only use electronics with max 9 A for your safety.
Input: 110 ~ 240 VAC, 10.1 A, 50 ~ 60 Hz
Output: DC 5V, 2.1A
-
Power & Data Connection
The standard Kolo power and data cables are routed from the bottom.
-
Basic Power Consumption
Kolo Duo: 12 ~ 30 W
Kolo Duo+: 24 ~ 60 W
Kolo Duo++: 36 ~ 90 W
-
Ventilation
Kolo Duo: 3 IN and 1 OUT ventilation fans
Airflow: 124 CFM (210.2 m3/h)
Kolo Duo+: 6 IN and 2 OUT ventilation fans
Airflow: 229 CFM (389.5 m3/h)
Kolo Duo++: 9 IN and 3 OUT ventilation fans
Airflow: 335 CFM (568.8 m3/h)
-
Lighting
The LED lights are installed in the ceiling panel and are activated by motion-sensor when entering the booth. They turn off automatically after a set time interval of inaction. The time interval can be set to 15, 45, 300, 900 seconds.
The LED lights are dimmable with a maximum brightness of 1800 lumens and the colour temperature can be controlled from a range of 2700 ~ 6500K.
-
Mobility
For small distance relocation, Kolo can be moved with built-in castors. Please contact us for relocation instructions. Kolo can also be easily disassembled for long distance transport.
-
Door Orientation
Kolo Duo STANDARD door orientation is RIGHT-handed.
When needed, the orientation can be changed on site by trained staff.
-
Door Lock
Standard Kolo comes with a door handle without locks. Handles with locks are available upon request. For digital locks, please contact us to check if the specification is compatible.
-
Seismic Safety
When installed in regions where seismic safety is required, you may order a seismic kit to anchor Kolo units on the floor.
-
Fire Safety
Sprinklers can be installed onsite to Kolo Duo. Please contact us for more details.
-
Glass Safety
The glass is laminated which prevents the glass panels from shattering for users safety.
-
ADA Compliant
Kolo Duo can be adapted to accommodate all. You may order our ADA compliant Duo and kit for everyone to enjoy the privacy.
-
Maintenance
All electronic parts can be easily replaced.There is no need to take apart the Kolo unit to access the maintenance compartment. Please send us an email or notify your local dealers for more after service information.
-
Floor Tile
The PET floor tile can be replaced.
-
Warranty
Kolo provides a limited 5 year warranty on structure and 2 year warranty on all electrical and/or expendable parts such as fan, power outlets, power cable, gas lift, etc.
Click Kolo Duo Specification to view a PDF of full technical information. Please ensure there is a minimum clearance of 200mm above the booth for air circulation.

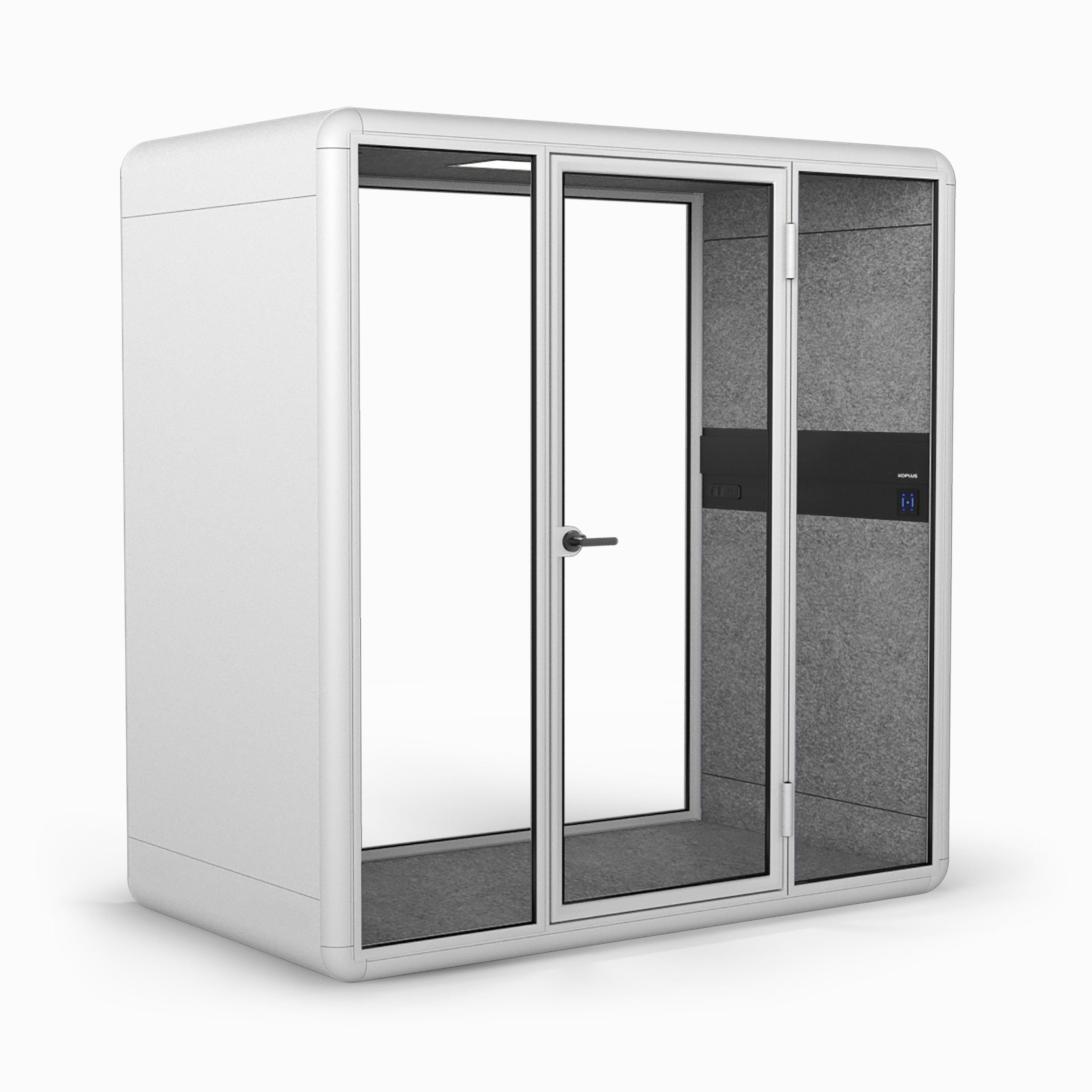

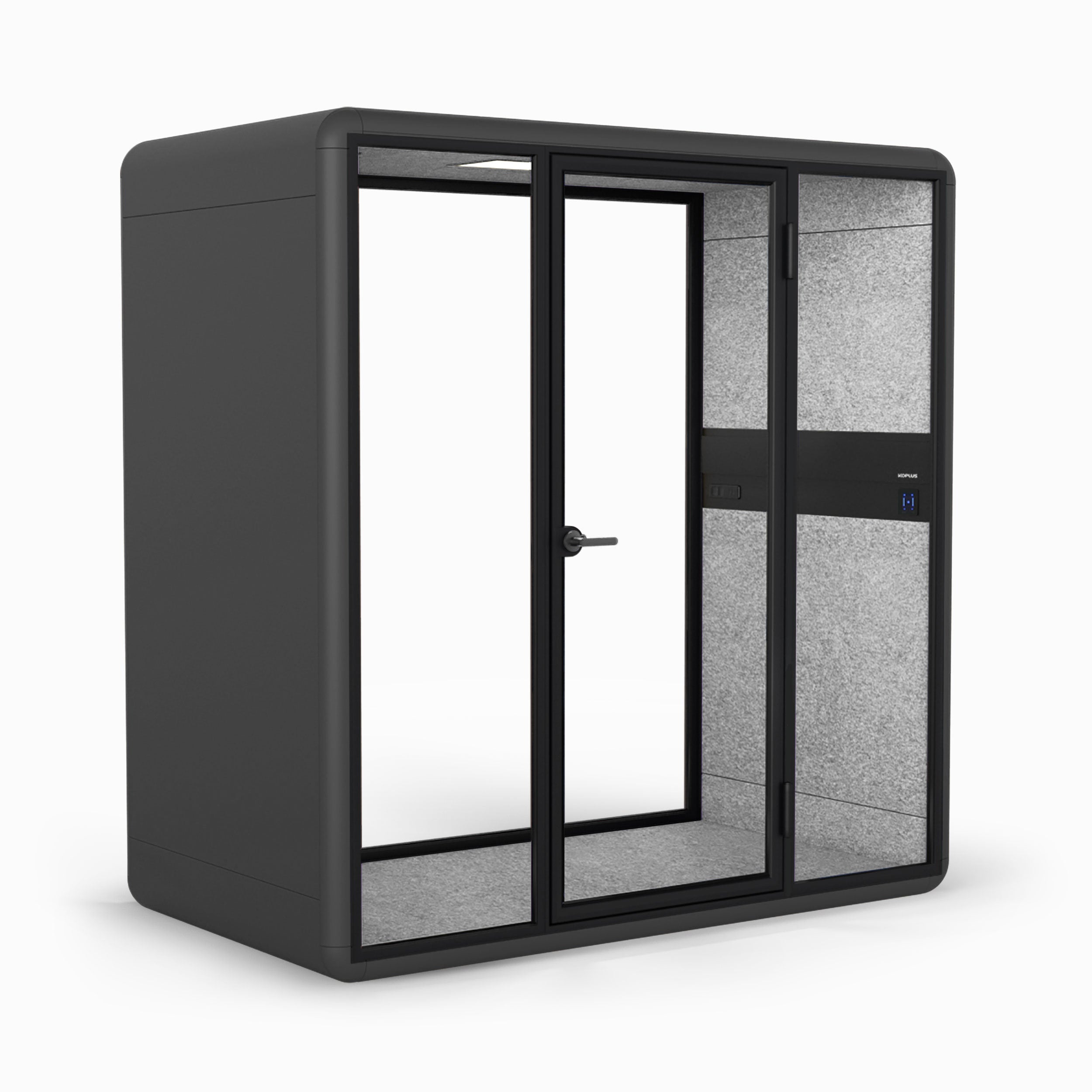

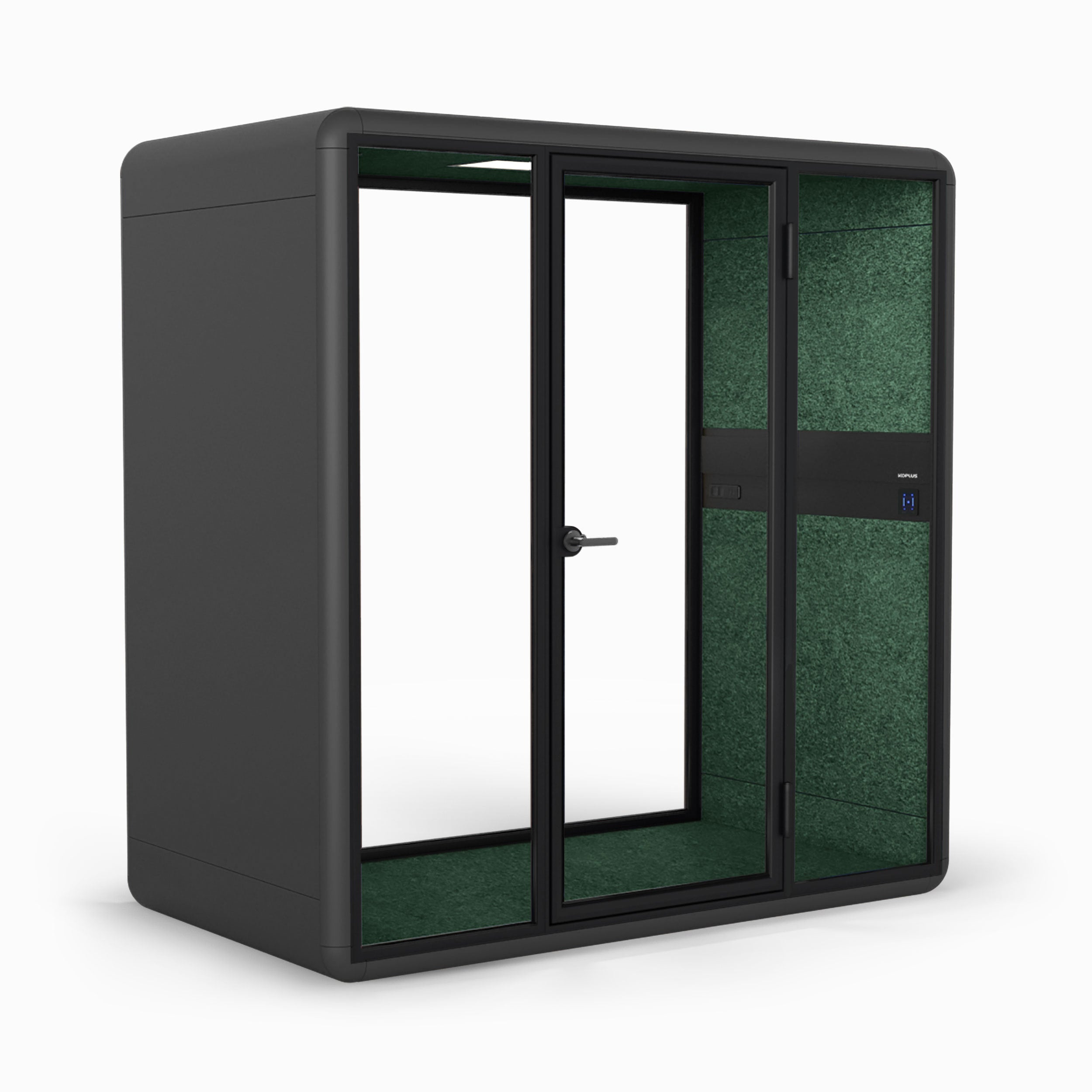

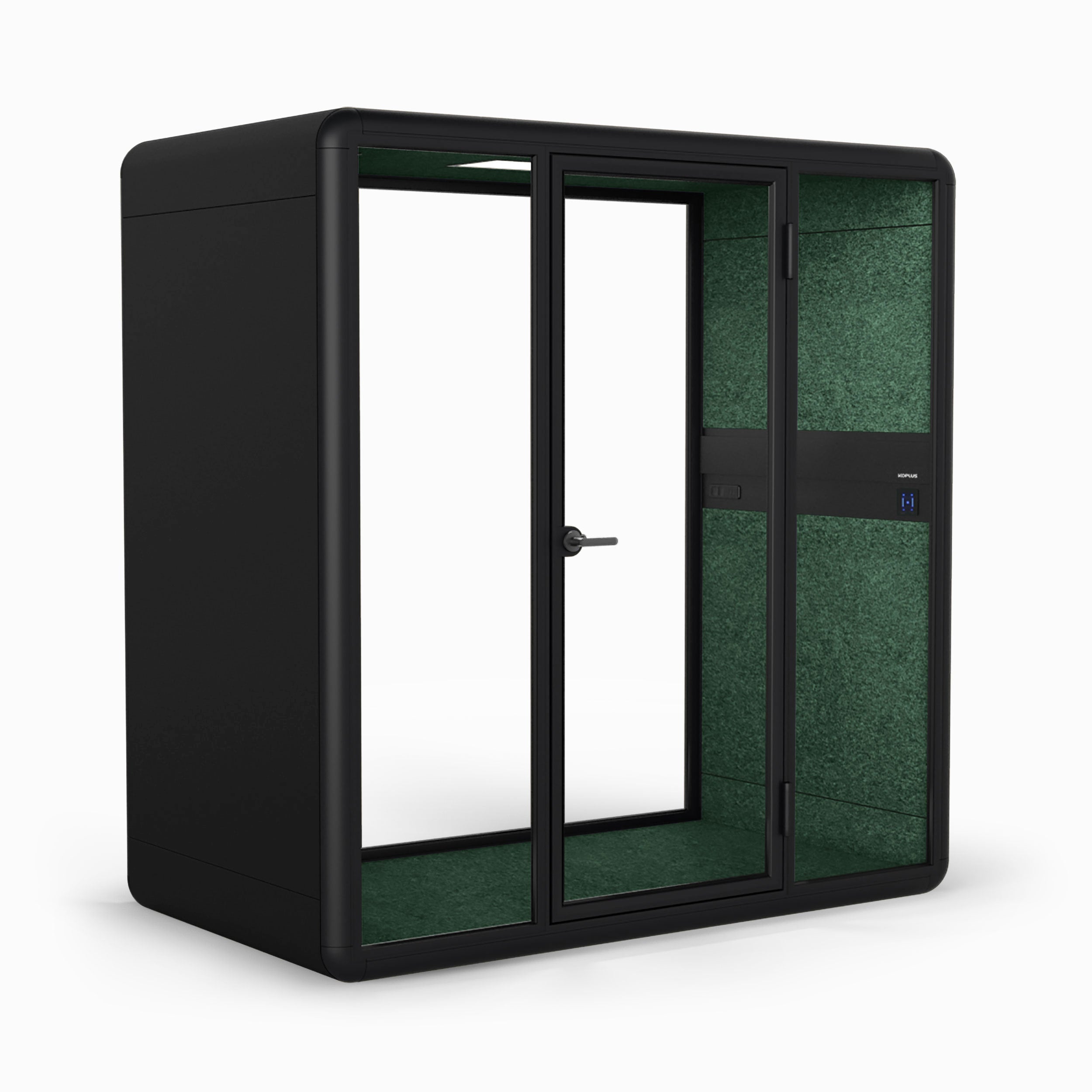

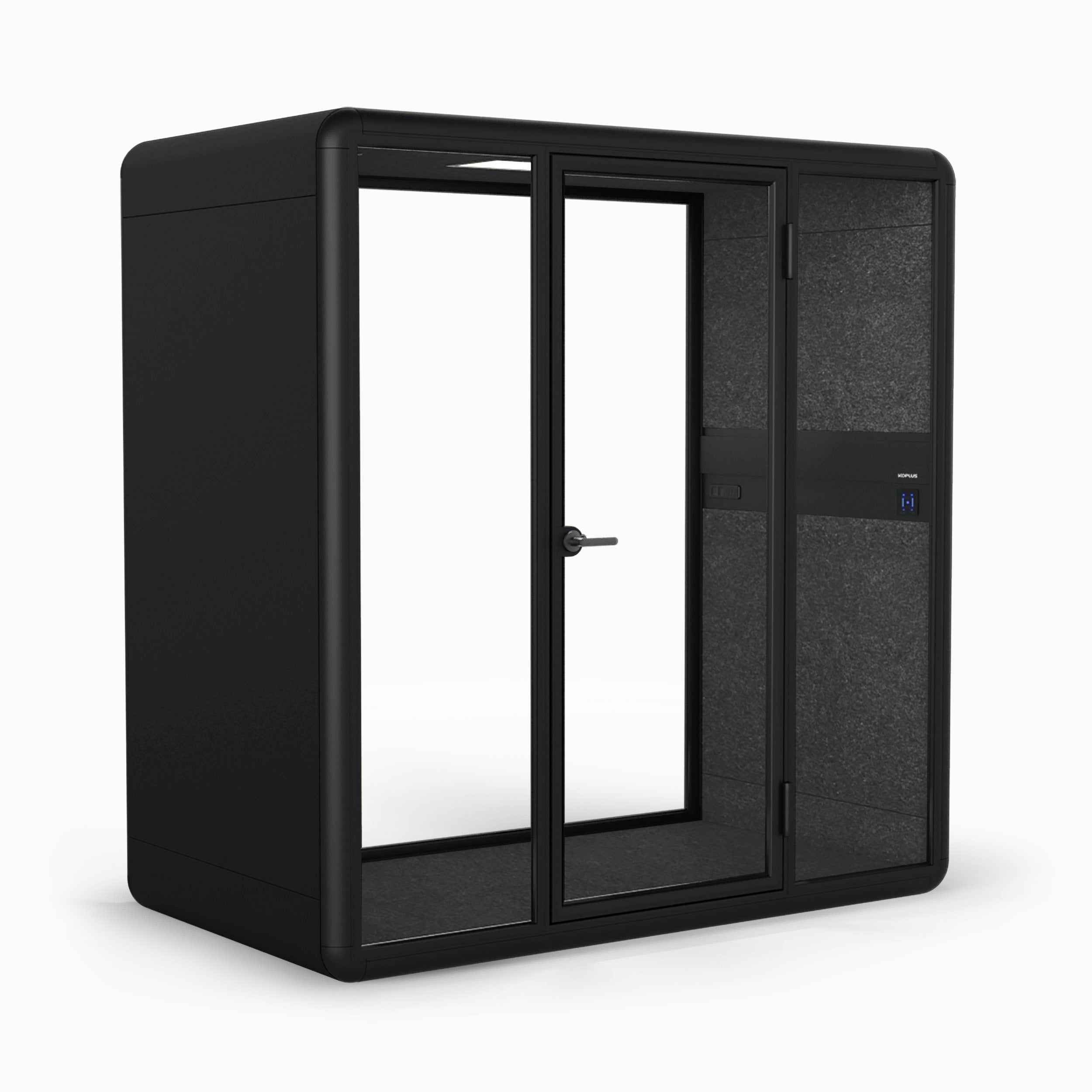

Please note other exterior and interior colour finishes are available on a made to order basis. This will involve a lead time of around 14 weeks, with price available upon application.
.
Contact us for a quotation to include delivery & installation T: 0800 731 4592 E: info@southernofficefurniture.co.uk
