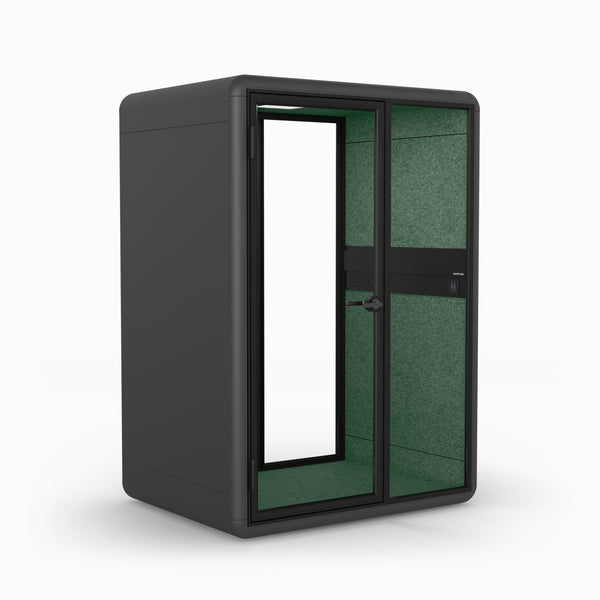

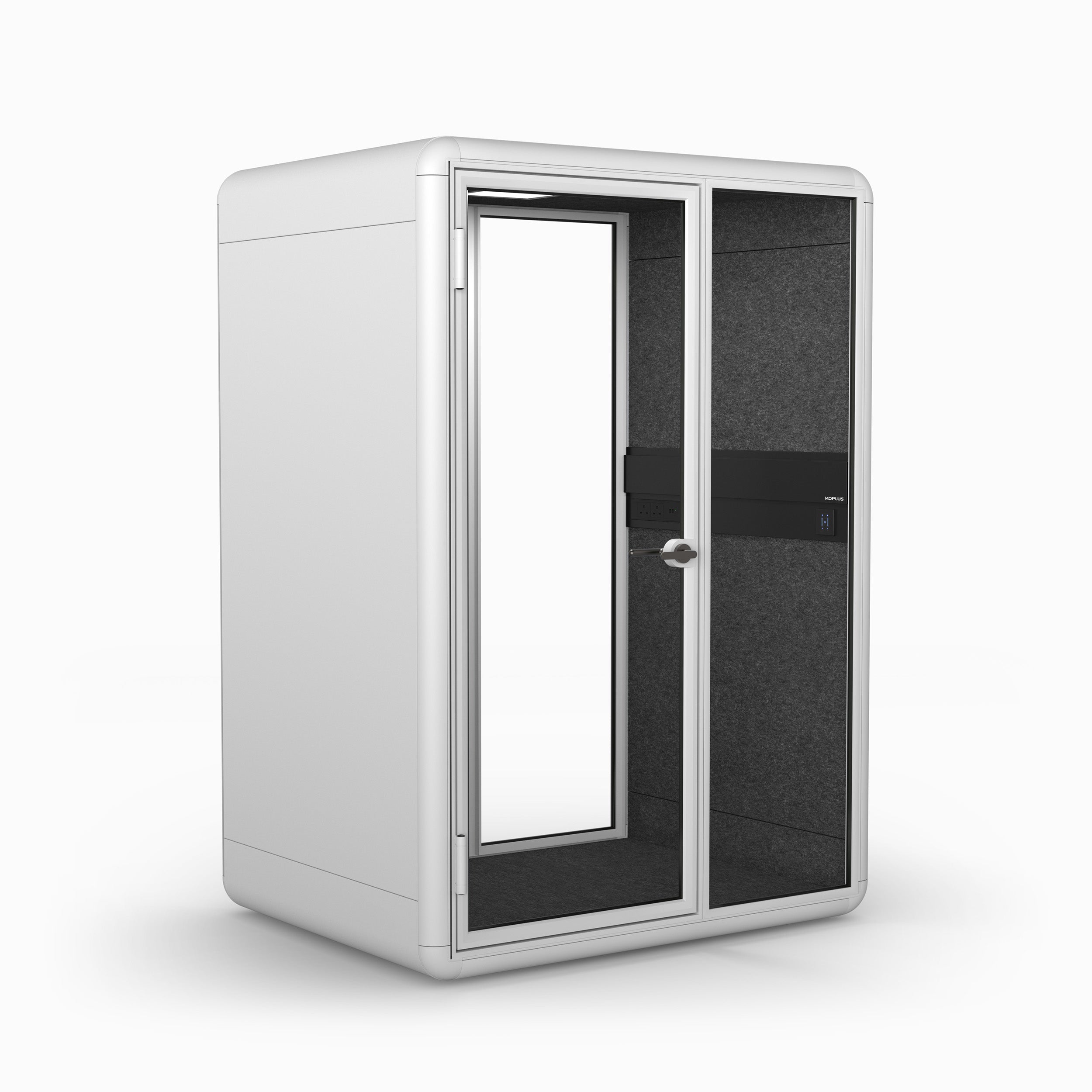

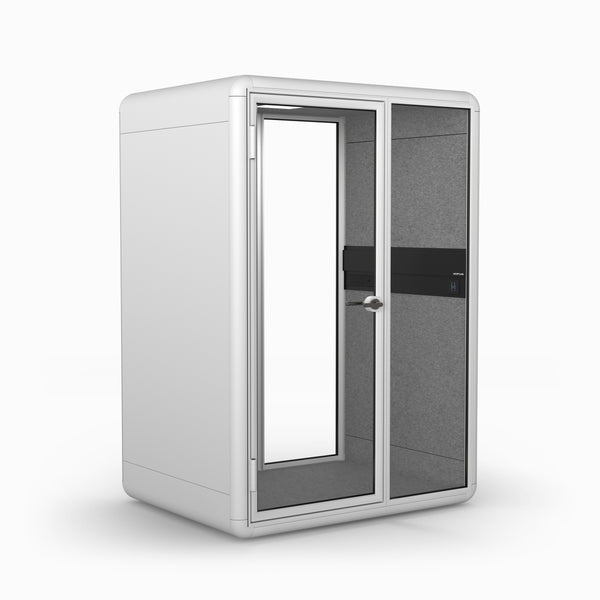

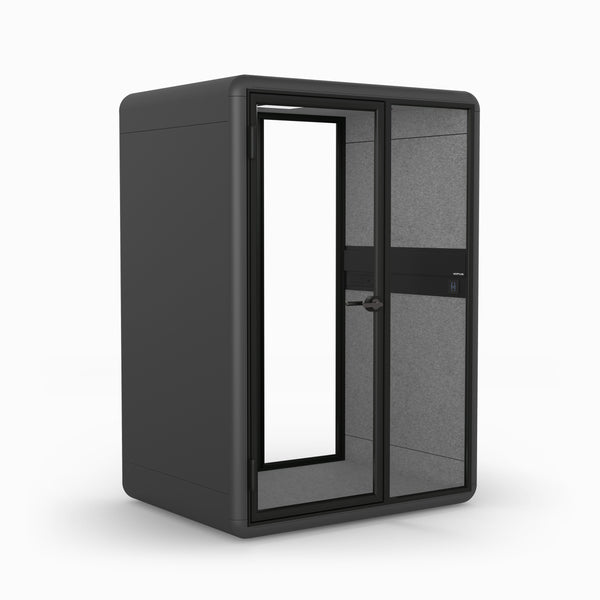

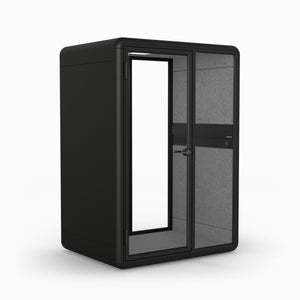

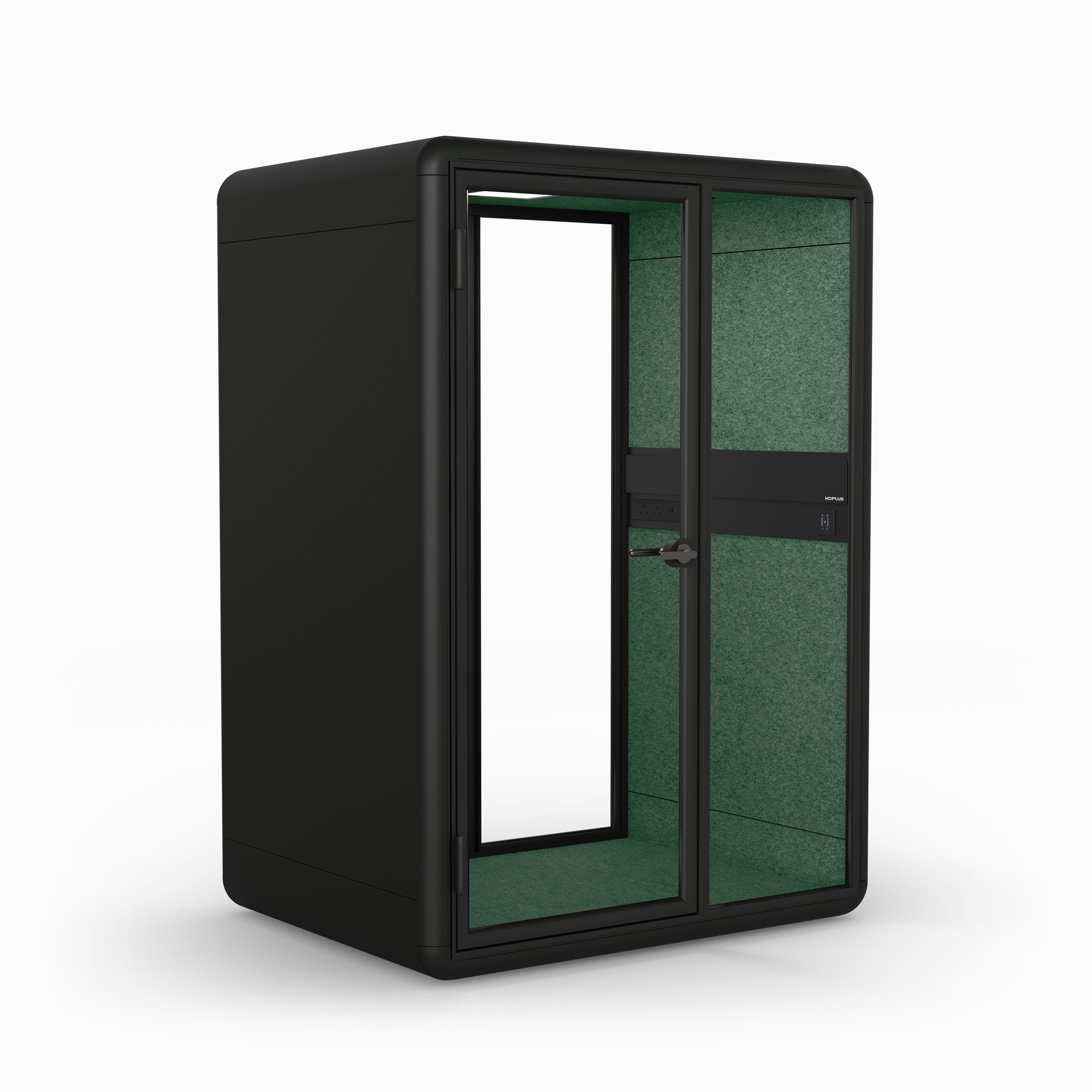

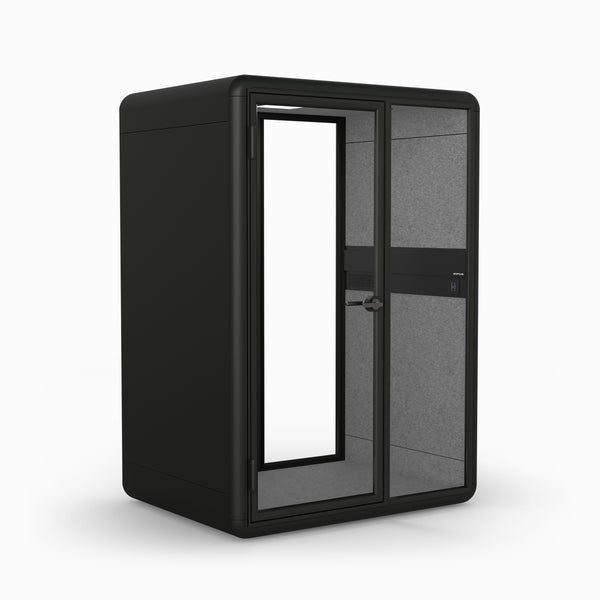

A self-contained individual studio space designed for private work in an open-plan workspace.
Kolo Midi offers ample room to fit in a work desk and a chair. So, you can settle in comfortably and focus on work without outside distraction. Create your personal space at work with the Kolo Midi Studio Booth.
-
Exterior Dimension
W 1600 x D 1220 x H 2250 mm
-
Interior Dimension
W 1470 x D 1110 x H 2110 mm
-
Weight
406 kg
-
Customisable Space
Discuter Sofa
Focus Desk
Occupancy Light
Horizontal Lock
Digital Lock Fingerprint & Card
Monitor Mount
Seismic Kit
-
Acoustic Performance
Based on ASTM E596-96 standard.
NIC rating: 30 dB
-
Power Outlets
Kolo Midi: 2 AC power outlets, 2 USB-A charging ports, 1 CAT-6 port, 1 IEC C13 cable. The power outlet and components are UL, PSE, and CE certified.
The fuse on Kolo Midi is set with max 10 A.
Please only use electronics with max 9 A for your safety.
Input: 110 ~ 240 VAC, 10.1 A, 50 ~ 60 Hz
Output: DC 5V, 2.1A
-
Power & Data Connection
The standard Kolo power and data cables are routed from the bottom. It is also possible to route power and data cables from the top, available upon request. Please contact us for more information.
-
Basic Power Consumption
Kolo Midi: 12 ~ 30 W
-
Ventilation
Kolo Midi: 3 IN and 1 OUT ventilation fans
Airflow: 133 CFM (226.8 m3/h)
-
Lighting
The LED lights are installed in the ceiling panel and are activated by motion-sensor when entering the booth. They turn off automatically after a set time interval of inaction. The time interval can be set to 15, 45, 300, 900 seconds.
The LED lights are dimmable with a maximum brightness of 1800 lumens and the colour temperature can be controlled from a range of 2700 ~ 6500K.
-
Mobility
For small distance relocation, Kolo can be moved with built-in castors. Please contact us for relocation instructions. Milli can also be easily disassembled for long distance transport.
-
Door Orientation
Kolo Midi STANDARD door orientation is LEFT-handed.
When needed, the orientation can be changed on site by trained staff.
-
Door Lock
The door handle comes standard without lock. Handle with lock is available upon request. For digital lock, please contact us to check if the specification is compatible.
-
Seismic Safety
For regions where seismic safety is required, seismic plates and bolts are available upon request
-
Fire Safety
Sprinklers can be installed onsite to Kolo Midi. Please contact us for more details.
-
Glass Safety
The glass is laminated which prevents the glass panels from shattering for users safety.
-
Maintenance
All electronic parts can be easily replaced.There is no need to take apart the Kolo unit to access the maintenance compartment. Please send us an email or notify your local dealers for more service information.
-
Floor Tile
The PET floor tile can be replaced.
-
Warranty
Kolo provides a limited 5 year warranty on structure and 2 year warranty on all electrical and/or expendable parts including fan, power outlets, power cable, gas lift, etc.
Click Kolo Midi Specification to view a PDF of full technical information. Please ensure there is a minimum clearance of 200mm above the booth for air circulation.
Please note other exterior and interior colour finishes are available on a made to order basis. This will involve a lead time of around 14 weeks, with price available upon application.
Delivery & installation typically within .
Contact us for a quotation to include delivery & installation T: 0800 731 4592 E: info@southernofficefurniture.co.uk
